35HP Mini Crawler Bulldozer
Product Description
FDT356 multi-function crawler tractor is mainly used for bulldozing and level off land, snow, digging, ditch cleaning etc, with
characteristics of high efficiency and big traction. After four unity before loading, it can realize loading, bulldozing, leveling,
clamping, fast conversion between different practices and work more flexible.
This series product can be equipped with different farming tools, namely the hydraulic reversing clutch and the operation more
easy and flexible.
Specification Detail
|
Dozer model
|
FDT3566S-SA
|
FDT356S-LA
|
|
Overall Length(with blade or loader)(mm)
|
2960
|
3200
|
|
Overall Length(no blade or loader)(mm)
|
1940
|
2200
|
|
Overall Width(with straight blade or loader)(mm)
|
1650
|
1550
|
|
Overall Width(no blade or loader)(mm)
|
1410
|
1410
|
|
Overall Height to top of ROPS(mm)
|
2285
|
2285
|
|
Height(mm)
|
2160(up to 2260)
|
2160(up to 2260)
|
|
Ground Contact Length(mm)
|
1100
|
1360
|
|
Track Gauge(mm)
|
1150
|
1150
|
|
Track width (mm)
|
290
|
290
|
|
Ground clearance(mm)
|
240
|
240
|
|
Operation Weight(kg)
|
2830
|
3300
|
|
Max.Drawbar pull (kgf)
|
2350
|
2790
|
|
Pitch (mm)
|
109
|
109
|
|
Traction(kN)
|
24
|
24
|
2. Specification of Diesel engine
|
Engine model
|
403F-E17T
|
|
Type
|
Direct, 4 cylinder, 4 stroke, water cooled,
|
|
Bore×Stroke(mm)
|
95×105
|
|
Rated power/rotate speed(hp/r/min)
|
35hp/3600rpm
|
|
Fuel consumption(g/kw.h)
|
≤243
|
|
Oil consumption(g/kw.h)
|
≤1.63
|
3.Working device:
6 way dozer blade for FDT356S-S
|
|
|
Width ×Height(mm)
|
1640(1740)×675
|
|
Lifting height(mm)
|
500
|
|
Depth (mm)
|
100~150
|
|
Cutting angle
|
52.5°
|
|
Rated working pressure(MPa)
|
16
|
|
Max.digging depth of blade(mm)
|
80
|
|
Blade Capacity
|
0.67CBM
|
4 in 1 front loader for FDT356S-L
|
Rated Loading Capacity(kg)
|
550
|
|
Volume of the Bucket(CBM)
|
0.26
|
|
Bucket dump height(mm)
|
2200
|
|
Dumping Distance(mm)
|
550
|
|
Bucket Lifting Angle(°)
|
45
|
|
Bucket Tilt Angle(°)
|
48
|
|
Bucket Depth(mm)
|
100
|
|
Working Pressure(MPA)
|
16
|
|
Loader Lifting Time(s)
|
7
|
|
Loader Descend Time(s)
|
4
|
Detailed Images

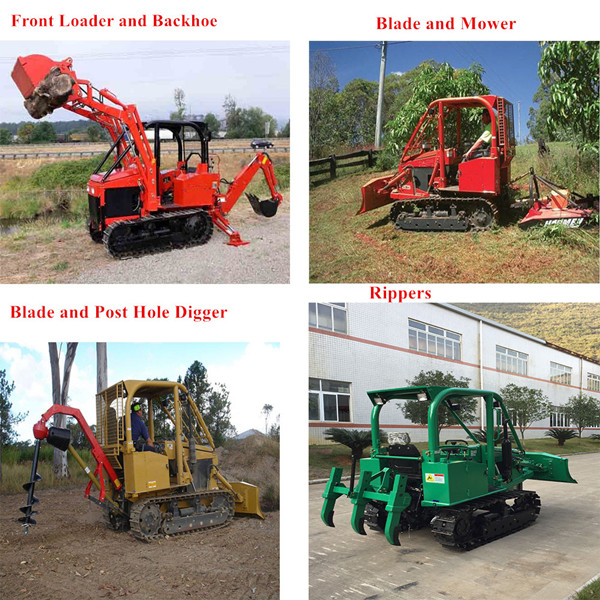

Working on Site
